Product Description

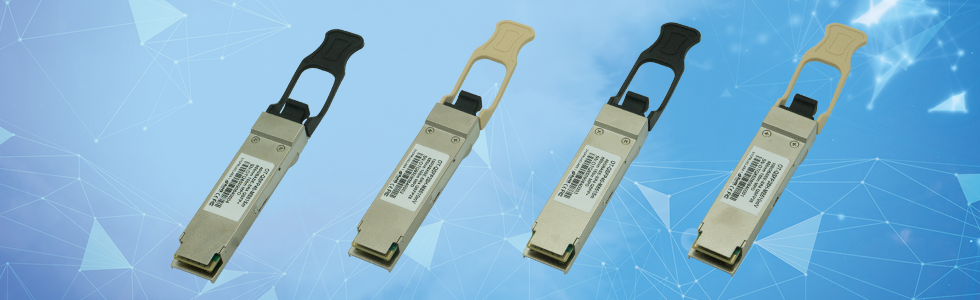

40G QSFP+ Transceivers
OPTOSEA’s pluggable fiber optic QSFP transceiver module devices designed for 40GbE short-range data center interconnects. The QSFP+ Transceiver includes solutions from 100m to 40km transmission, from MMF to SMF and from PSM to Dual LC, which
meet maximum satisfaction of various Network Design/Computing Network and other Network applications.
Applications
InfiniBand SDR DDR QDR
40G Ethernet
TOR Switch
Datachenter, Server and Supercomputer
Features
4 Parallel lanes design (SR4, ESR4, PSM LR4, PSM IR4)
4 CWDM lanes Mux design (LR4, IR4, ER4)
QSFP+ MSA compliant
Low power design
Operating Temperature: 0~70°C
| Part No. | Data Rate | Form Type | Wavelength | Transmission Distance | Fiber Type | Interface | TX Power (dBm) | RX Sensitivity | DDM Support |
|---|---|---|---|---|---|---|---|---|---|
| OT-QSFP40-S3110 | 40Gb/s | QSFP+ | 1310nm | 10km | SMF | MPO | -3.2~2.3 | -11.5 | YES |
| OT-QSFP40-S3102 | 40Gb/s | QSFP+ | 1310nm | 2km | SMF | MPO | -5.5~1.5 | -11.5 | YES |
| OT-QSFP40-M8530m | 40Gb/s | QSFP+ | 850nm | 300m | MMF | MPO | -7.3~1.0 | -9.9 | YES |
| OT-QSFP40-M8515m | 40Gb/s | QSFP+ | 850nm | 150m | MMF | MPO | -7.6~2.4 | -11 | YES |
